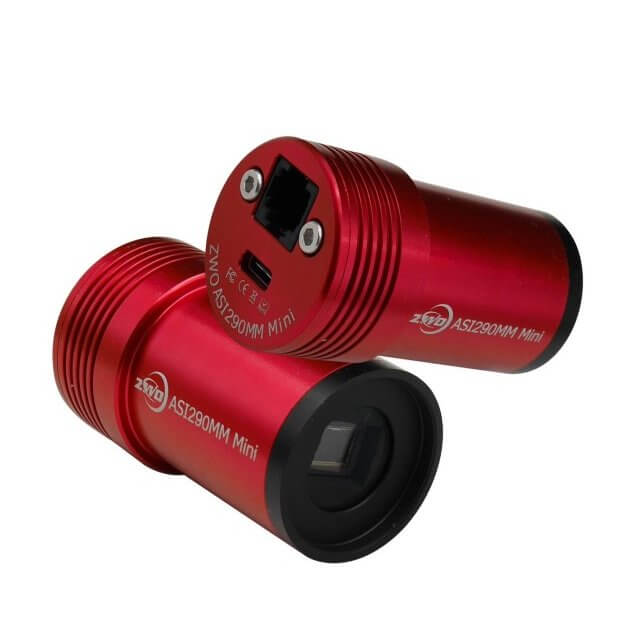

ASI290MM Mini camera integrates Sony IMX290 1/3″ sensor (5.6 mm x 3.2 mm). It is ZWO first mini camera. This camera has 1936 x 1096 pixels. The pixel size is 2.9 μm x 2.9 μm. This camera provides 12bit ADC and its QE peak is over 80%
Astrophotography Performance
ASI290 mini camera offers you very good performance for planetary imaging and guiding. Low read noise, high dynamic range, QE peak >80%, AR protective window and much more.
High QE
Relative QE Curve, we estimate the Peak Value is about 80%.
290Mini vs. 290MM
Compared with ASI290MM camera, 290mini have smaller outlook, lighter weight, and it can reach focus at same position with eyepiece.
USB2.0Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type C port. Type C port is very popular in mobile phones, it will not care about positive side and negetive side of the adapter.
ST4 Port: Can connect mini camera direct connect to auto guide port of mount.
Drivers and Softwares:
Our website has newest camera drivers and many DSO and Planetary capture softwares. Please make sure the newest driver and software has been installed before you start shooting:
Software and Drivers | ZWO ASI (astronomy-imaging-camera.com)
