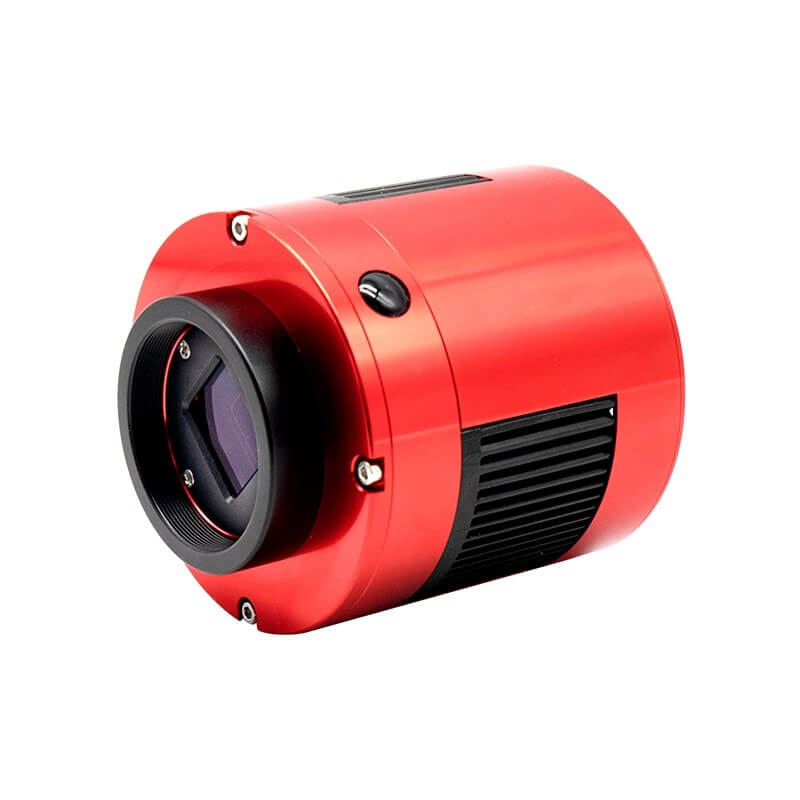

ASI533MM-P Mono Camera

Considered an upgrade of ASI183 camera series, the ZWO ASI533MM Pro is a cooled monochrome camera that comes with an impressive full well of 50,000e and a large 9.05MP sensor. The size of the sensor gives this camera a 14bit dynamic range and provides astrophotographers with crisp clear images. This camera retains all of the high-quality features of the ASI183 cameras, like high QE and high frame rate, but it also comes with no amp glow, readout noise as low as 1.0e, a 3.76μm pixel size, and 2-stage TEC cooling technology.

ZWO has designed this camera to be the perfect companion for beginning astrophotographers looking to do deep sky imaging.

The ASI533MM Pro camera from ZWO has a body design equipped with an AR-coated window and an electronic shutter with no vibration. The square back-illumination means this camera has a relative QE of up to 80%!

The cooling technology comes in the form of TEC Cooling and is a two-stage regulation with a thermal delta of up to -35° C. The 2-stage thermoelectric cooler greatly reduces the dark current and improves the signal-to-noise ratio, even during long exposures made up of hundreds of seconds. Please note that the lower the ambient temperature, the smaller the Delta T.

Sony IMX533 Sensor
ASI533MM Pro Camera Sensor
Sony’s CMOS sensor is back-illuminated to help improve sensitivity and noise reduction. The ASI533MM Pro sensor uses zero amp glow circuitry, meaning you have no reason to worry about amp glow, even when using high gain, long exposure imaging.

Sony’s IMX533 sensor comes complete with 3.76 x 3.76 micron pixels and a diagonal of 15.99 mm. This 1″ sensor gives excellent performance–comparable to SCMOS and EMCCD sensors–and has a resolution of 3008 x 3008. With a sensor of this size, you will be able to image entire star clusters without losing the details of single stars within the cluster! The 14bit digital ouput of this Sony sensor allows for a possible readout signal of 9m effective pixels at a high speed of 20 frames per second. The ASI533MM sensor works for images that required high and low noise.

Computer Interface
ASI533 External Connections Infographic

The ASI533MM Pro Camera comes with USB3.0 compatibility, meaning that you will have a high frame download speed while avoiding any data loss during downloads. The included USB2.0 hub comes with two USB2.0 ports that can be used for the connecting to the driving chamber.

You’ll never miss a frame with 256MB DDR3 internal memory, you can be sure that you data is safe, even when using the USB2.0 outputs. ZWO has ensured that the camera is compatible with Windows, Mac, and Linux.

ASIair Plus Camera Control (sold separately)
There is a wireless camera control solution available for this camera, and it’s called the ZWO ASIair Plus. This small wireless module allows you to focus, take images, make adjustments with your smartphone or tablet, and even do plate solving and computerized mount control with the built-in SkySafari bridge. If you’d like to add an ASIair Plus to your camera order, you can find it in the suggested accessories section.
