New Tripier 360

$1,203.24

This is the NEW version of the heavy duty Tripier 360 for the iOptron CEM120 mount. It combines the strength and stableness of a pier with the levelling flexibility of a tripod. 1/4 inch thick aluminum alloy pier and CNC machined legs with adjustable feet. The main difference from the older design is that this new design is lighter, having a smaller diameter main tube.

Available on backorder

SKU: ASC11376 Categories: ,
Guaranteed Safe Checkout

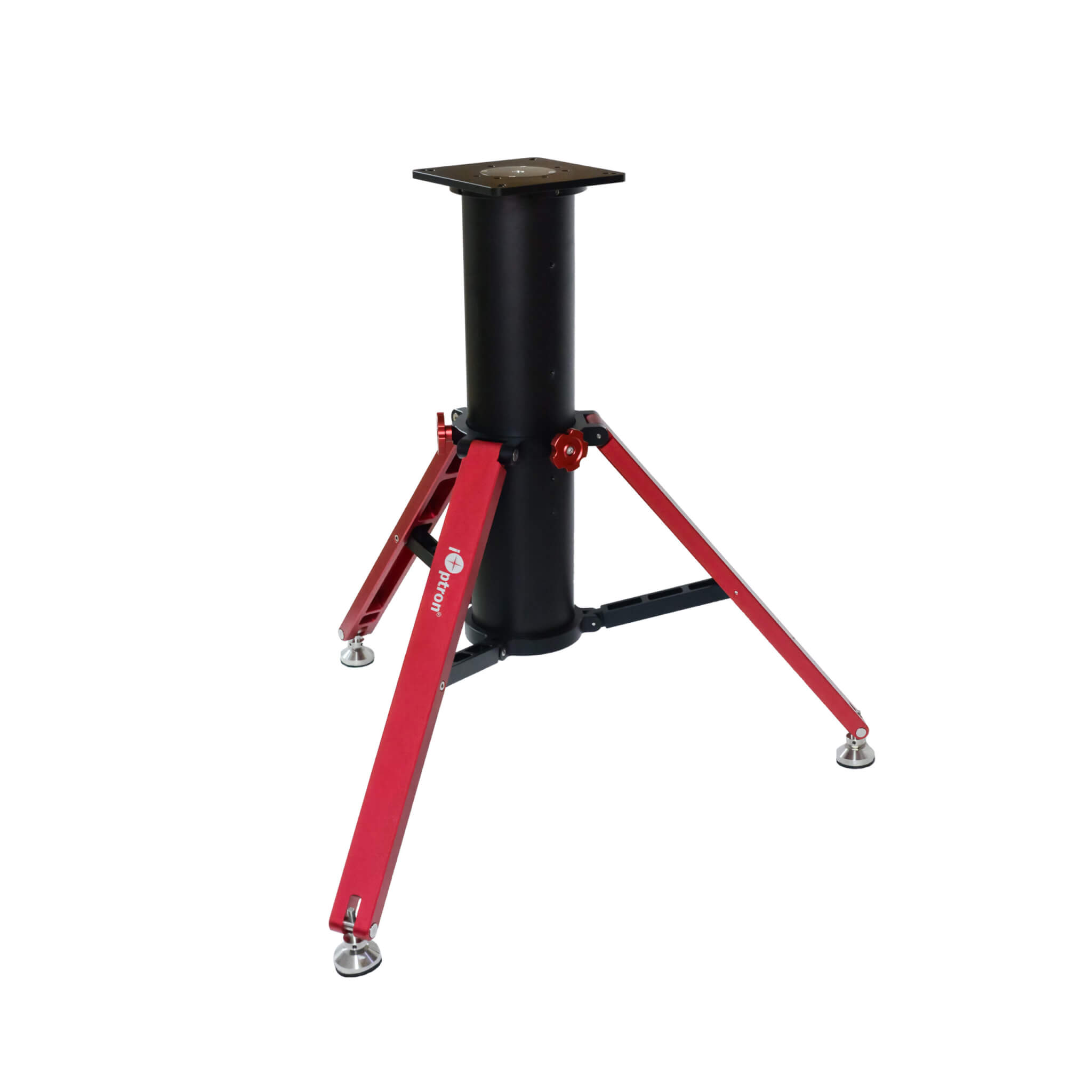

New Tripier 360 for CEM120 Mount

This is the NEW version of the heavy duty Tripier 360 for the iOptron CEM120 mount. It combines the strength and stableness of a pier with the levelling flexibility of a tripod. 1/4 inch thick aluminum alloy pier and CNC machined legs with adjustable feet. The main difference from the older design is that this new design is lighter, having a smaller diameter main tube.

The New Tripier 360 can also be used for the following mounts, directly or with an adapter:

  • CEM70
  • CEM60
  • iEQ45 Pro/iEQ45
  • AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
  • CEM40/GEM45 (need MiniPier 8032 or MiniPier top plate 8032PT)
  • Paramount MyT (no adapter needed)
  • Takahashi (EM-200), SkyWatcher (HEQ5/EQ6/NEQ6/AZEQ6), Celestron (CGEM/CGEM-DX), Orion Atlas (EQ-G/AZEQ-G) ( need Tri-Pier adapter 8036-TK)
  • Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
  • ZEQ25/CEM25 (need Tri-Pier adapter 8036-25)
  • Celestron CGX/CGX-L (need top plate 8039-CGX)
Weight15 kg
Dimensions80 × 30 × 30 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Max Payload360 lbs (165 kg)
Self Weight~31 lbs (13.9 kg)
Material and finishAluminum aloy (CNC), anodized
Pier Diameter150 mm
Pier wall thickness5 mm
Pier top plate210 mm x 210 mm
Adjustable Height860-1020 mm
Uneven Ground Range2″(51mm)
Leg Maximum Spread1150mm
Pier Dimension (folded)Φ240x820mm
WarrantyOne year limited
