ZWO ASI2600MC-Air

ر.ع.780.000

The ZWO ASI2600MC-Air is an innovative all-in-one astrophotography solution that combines a high-performance imaging camera, a built-in guide camera, and the ASIAIR smart controller into a single, streamlined device. Designed to simplify your setup, it eliminates the need for an off-axis guider, reduces cable clutter, and makes achieving correct back-focus easier, making it the ultimate tool for both beginner and advanced astrophotographers.

Availability: Available on backorder

Guaranteed Safe Checkout

ZWO ASI2600MC-Air

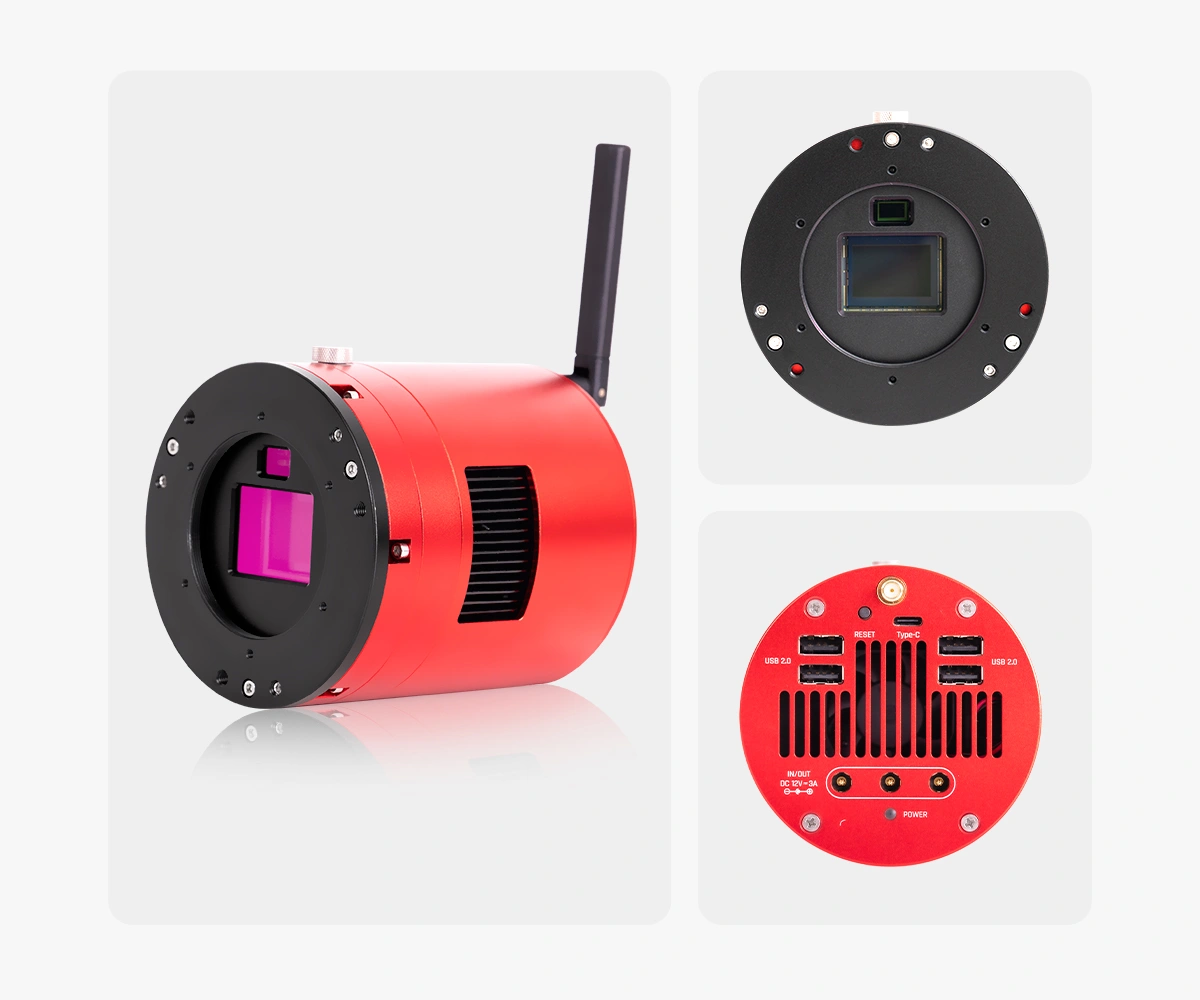

The ZWO ASI2600MC-Air is a game-changing astrophotography device that integrates essential components into a single, cohesive unit. Central to this system is the ASI2600MC camera, featuring a 26 MP APS-C sensor with back-illuminated technology that delivers high-resolution, color-rich images of deep-sky objects. This advanced camera is complemented by a built-in guide camera and the ASIAIR smart controller, creating a comprehensive, all-in-one solution for your astrophotography needs.

One of the standout features of the ASI2600MC-Air is its ability to eliminate the need for an off-axis guider (OAG). By incorporating the guide camera directly into the device, this system simplifies the setup process, making it easier to achieve correct back-focus without the mechanical adjustments typically required when using an OAG. This streamlined approach not only saves time but also reduces the risk of alignment errors that can affect image quality.

ASI2600MC Air simplifies setup
ASI2600MC Air simplifies setup

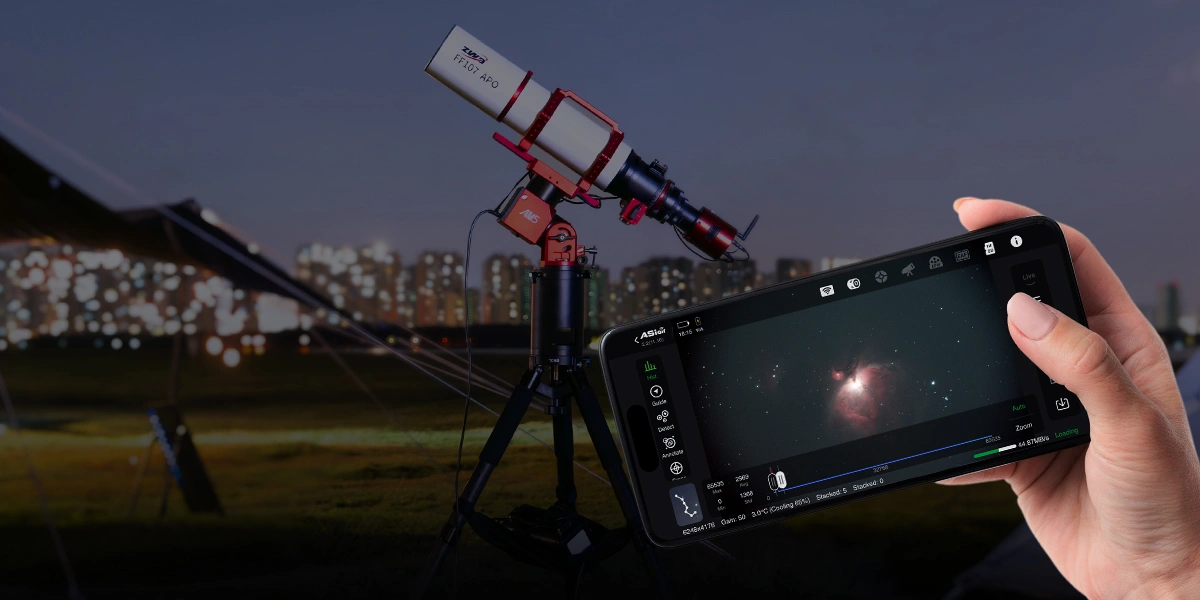

The ASIAIR smart controller, integrated within the ASI2600MC-Air, allows for seamless wireless control of your entire imaging system via your smartphone or tablet. This feature, combined with the reduction in cable clutter, enhances the portability and ease of use of your astrophotography rig, whether you’re setting up in your backyard or at a remote observing site.

The ASI2600MC-Air’s innovative design simplifies the process of achieving correct back-focus by eliminating the need for an off-axis guider. This makes it easier to set up your imaging system, reducing the complexity and time involved in aligning your equipment for optimal performance. With its intuitive design and advanced technology, the ASI2600MC-Air is compatible with a wide range of telescopes and is ideal for astrophotographers who demand both convenience and performance.

ASI2600MC Air simplifies setup
ASI2600MC Air simplifies setup

This all-in-one device allows you to focus on what matters most—capturing stunning celestial images—without the hassle of managing multiple pieces of equipment. Whether you are a seasoned astrophotographer or just beginning your journey into the cosmos, the ZWO ASI2600MC-Air offers a perfect balance of simplicity and sophistication, making it an indispensable addition to your setup.

Weight 1.5 kg
Dimensions 18 × 14 × 12.5 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Product Name Wireless Smart Camera
Model ASI2600MC Air
Dimensions Camera body: Ø90mm, 98mm height Antenna: 94mm long
Weight 760g
Operating Temperature -20°C~50°C
Storage Temperature -20°C~60°C
Operating Humidity 20% ~ 90%
Storage Humidity 30% ~ 70%
RAM 2GB DDR4
Storage Space eMMC 256GB
Wireless Network IEEE 802.11a/b/g/n/ac,2.4Ghz/5Ghz, effective transmission distance: 20m
DC Power 12V@3A-10A input. All three DC ports can be used both as input and output. You can use any one among them as power input, meanwhile the other two can only be used as DC output
HUB USB 2.0 – HUB *4
OS Windows, Linux, Mac OS
Adapter Ring M54x0.75
Back Focus 12.5mm or 17.5mm
Power Mode DC12V-3A
Max Power Dissipation 27.6W

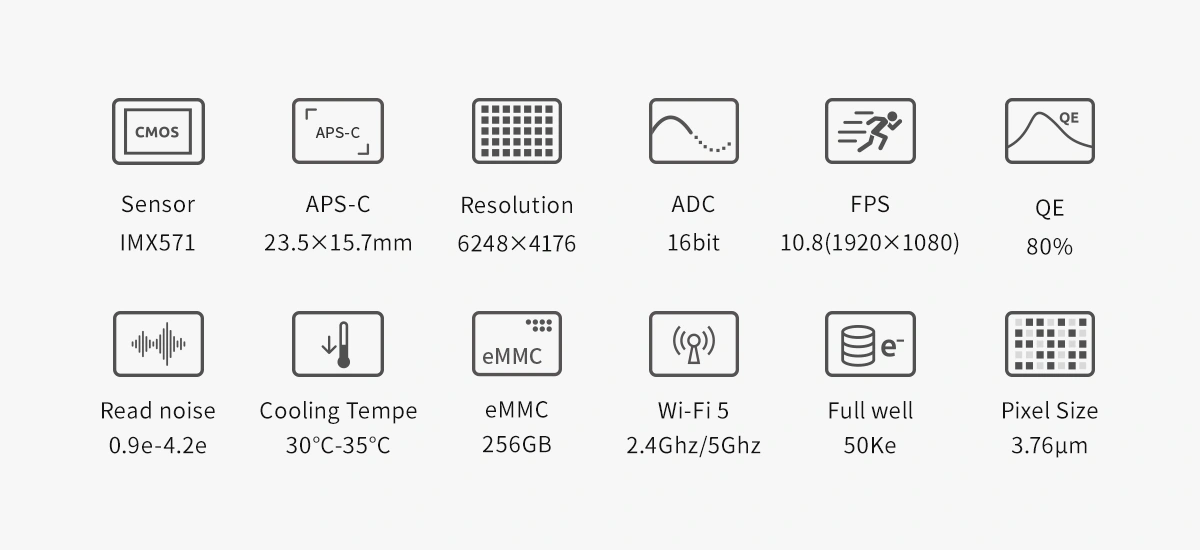

Characteristic Main Camera Guide Camera
Sensor SONY IMX571 SC2210_BW
Color Color Mono
Sensor Size APS-C Type 1/1.8
Pixel Size 3.76μm 4μm
Shutter Rolling shutter Rolling shutter
Image Resolution 26MP 6248×4176 2.07MP 1920×1080
Spectrum Range 400nm-1000nm 300nm-1000nm
Read Noise 0.84-4.2e (1.4e@10db gain) 0.6-3.2e ([email protected] gain)
Peak Quantum Efficiency 80% 500nm 92%
Full Well Capacity 73Ke* 8.78Ke
Diagonal 28.3mm 8.81mm
Max Frame Rate 36.4fps(320×240) 8.5fps
SNR 14.08stops 11.4stops
Dynamic Range 14bit 11.43bit
Data/Control
ADC 16bit 12bit
Acquisition Mode Continuous operation, software triggered Continuous operation, software triggered
Analog Gain -25dB – 460dB 0dB-350dB
Digital Gain 461dB-820dB (Limited to 700dB) 351dB-600dB
HCGGain 100 106
Exposure Time 32μs-2000s 32μs~10s
Exposure Control Auto/Manual \
Data Format RAW8,RAW16,RGB24, Mono8,Mono16 RAW8,RAW16, Mono8,Mono16
White Balance Auto/manual Auto/manual
Output Format Raw Raw
Software Bin Bin2 Bin3 Bin4 Bin1 Bin2
Function
Delta-T 30°C-35°C (tested at the environment temperature of 30°C)
Power Of Heating Tube 2.88W
