SV Bony SV604 Portable LCD Microscope
See hidden detail wherever you are. The SVBONY SV604 Portable LCD Microscope pairs a generous 7-inch HD display with a precision 1/4-inch sensor to deliver crisp 12 MP stills and smooth 1080 p video of anything from circuit-board solder joints to mineral grains. A flexible metal stand and 1 – 1200 × zoom let you set exactly the working distance you need, while eight dimmable ring LEDs and two side flood lights remove shadows on uneven objects.
Features at a glance
- Display: 7-inch IPS screen, 1080 p live-view for group teaching or bench work.

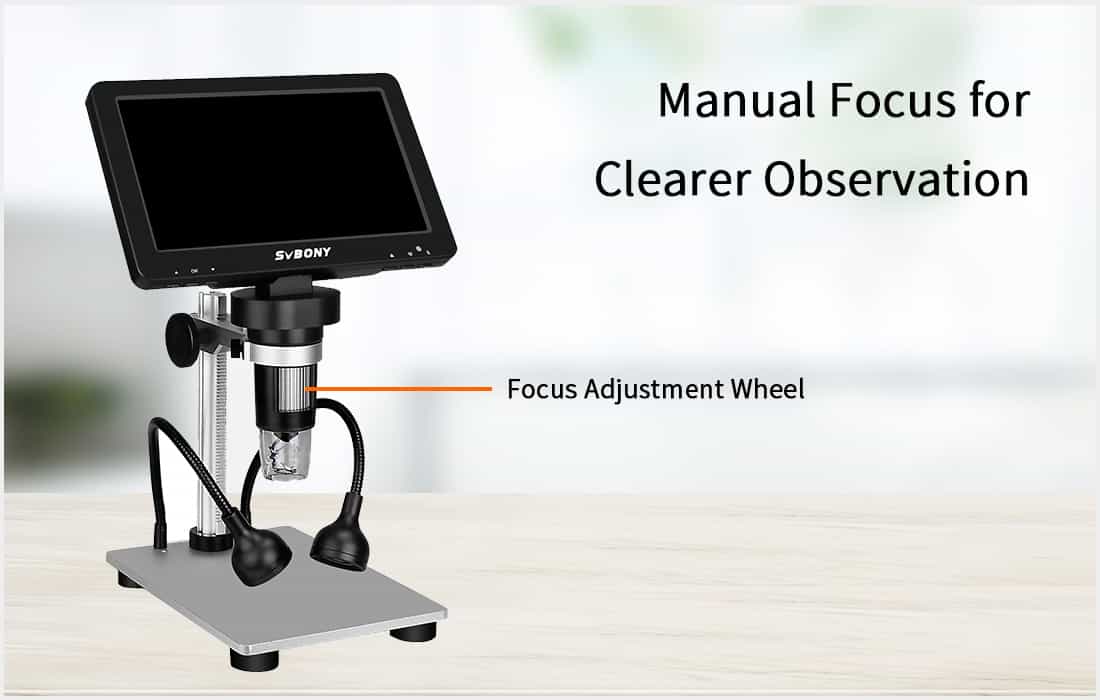

- Optics: 1 × – 1200 × continuous magnification, manual focus range 10–40 mm—see the whole specimen then dive into micrometre-scale detail.

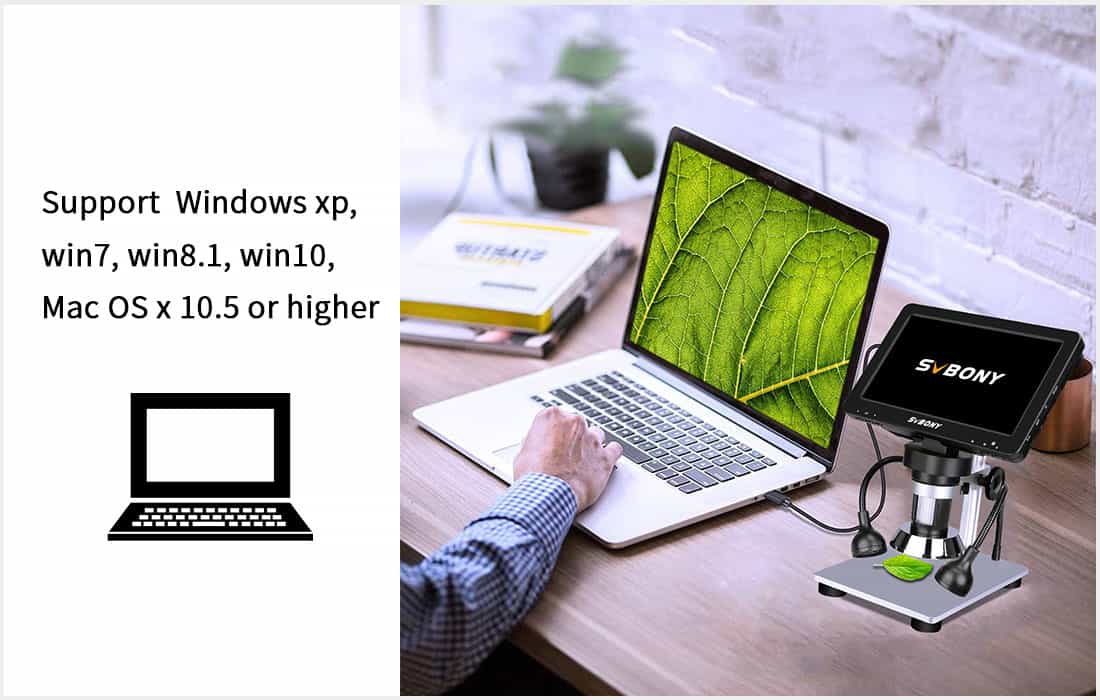

- Imaging: 12/10/8/5/3 MP photos (JPG) and 1080 FHD/1080 P/720 P video (AVI) stored to micro-SD or streamed to PC via USB-C (Windows & macOS).
- Lighting: 8-LED ring with stepless brightness plus twin adjustable auxiliary LEDs for glare-free oblique illumination.

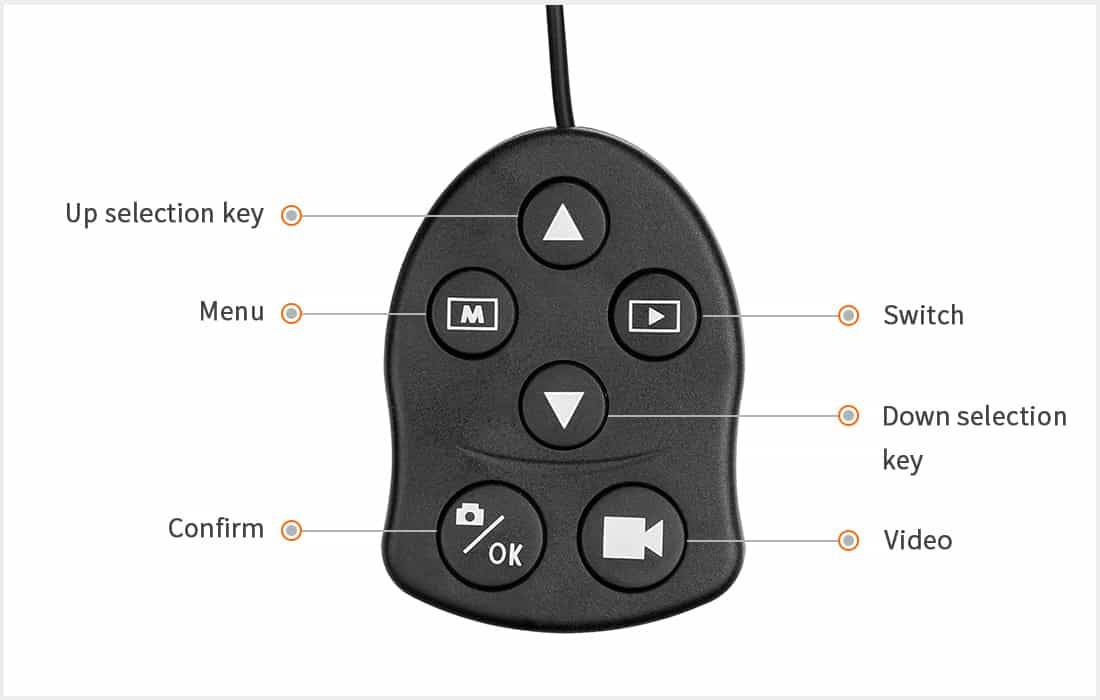

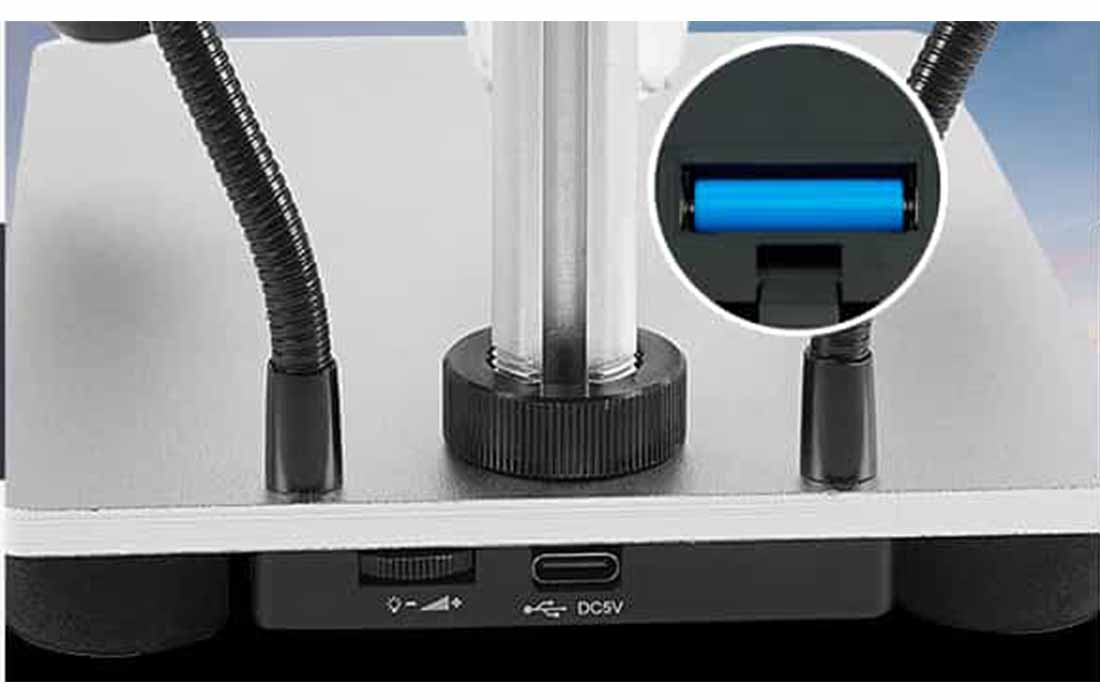

- Power & remote: 2000 mAh rechargeable Li-ion battery runs the screen and lights for mobile use; wired hand-controller triggers shots and menu navigation without touching the scope.
- Build: Rugged aluminium stand tilts and height-adjusts; operating range –20 °C to +60 °C for lab or field.
Typical uses
• QA inspection of PCBs, SMT joints and 3-D printed parts
• Classroom science demonstrations without the need for a computer
• Coin, stamp, gem and antique authentication
• SMD re-work guidance and documentation

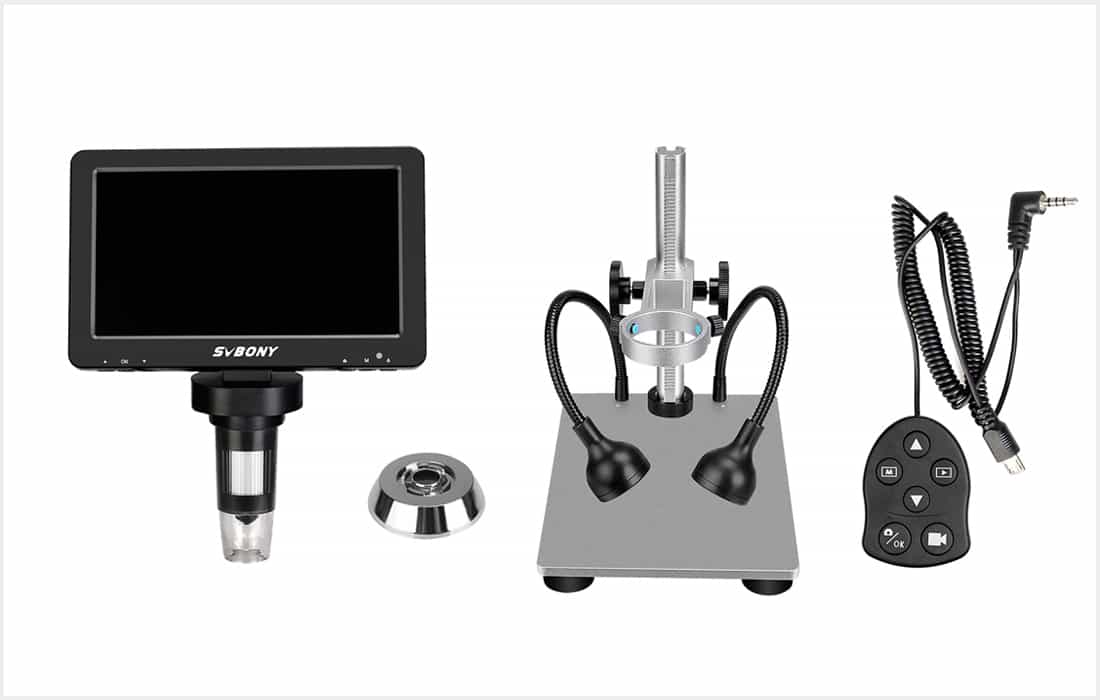

Package includes: SV604 microscope head with integrated 7-inch LCD, adjustable metal stand, USB-C cable, wired remote, calibration ruler, user manual, downloadable PC software.
Why you’ll like it
All the clarity of a bench-top digital microscope, none of the desk-space or cable clutter—SV604 is a grab-and-go visual lab for technicians, collectors and educators alike.
